| Part number: | CXM-27-50-80-36-AB00-F2-3 |

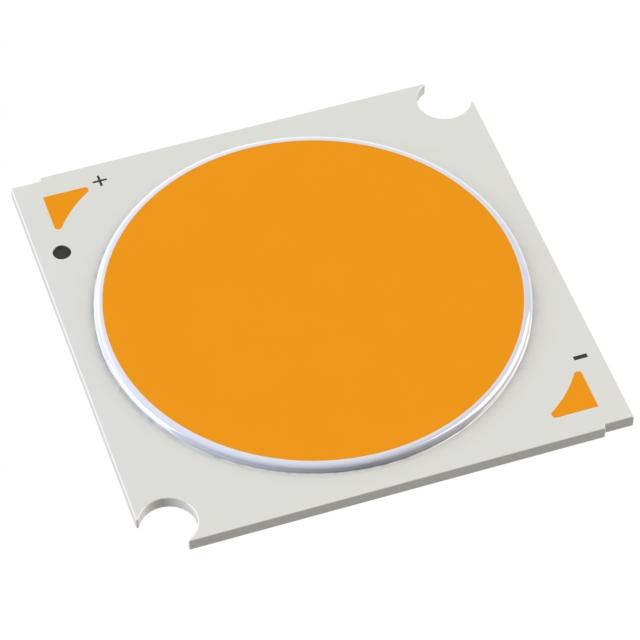

| Description: | LED COB CXM-27 GEN1 WHT SQ 5000K |
| Manufacturer | Luminus Devices |
| Encapsulation | Tray |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Luminus Devices" |
| Color | White, Cool |
| Size / Dimension | 27.89mm L x 27.89mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 35V |
| Height | 1.37mm |
| Current - Test | 1.8A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 3.6A |
| Lumens/Watt @ Current - Test | 132 lm/W |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 26.42mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 8310lm (Typ) |
|
