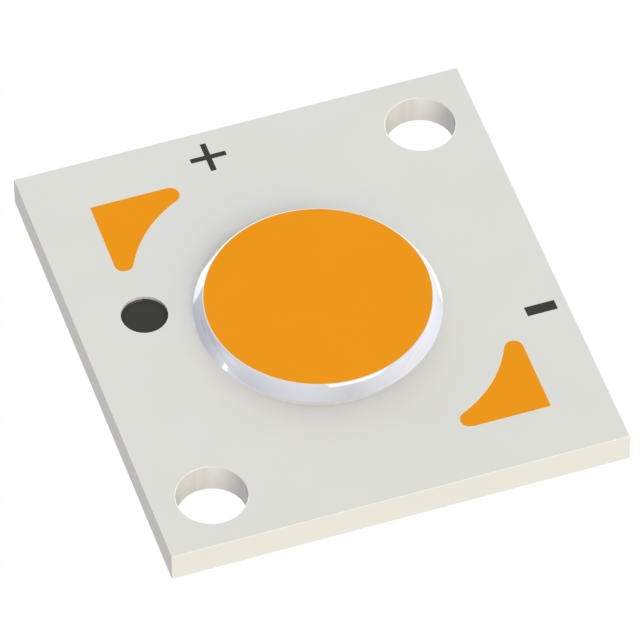

| Part number: | CXM-6-50-70-18-AA30-F4-3 |
| Description: | LED COB CXM-6 GEN3 WH RECT 5000K |
| Manufacturer | Luminus Devices |
| Encapsulation | Tray |
| Quantity | 300 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Luminus Devices" |
| Color | White, Cool |
| Size / Dimension | 12.00mm L x 13.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 17.3V |
| Height | 1.37mm |
| Current - Test | 300mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 710mA |
| Lumens/Watt @ Current - Test | 148 lm/W |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 6.30mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 768lm (Typ) |
|
