| Part number: | CXM-7-50-90-18-AA00-F2-3 |

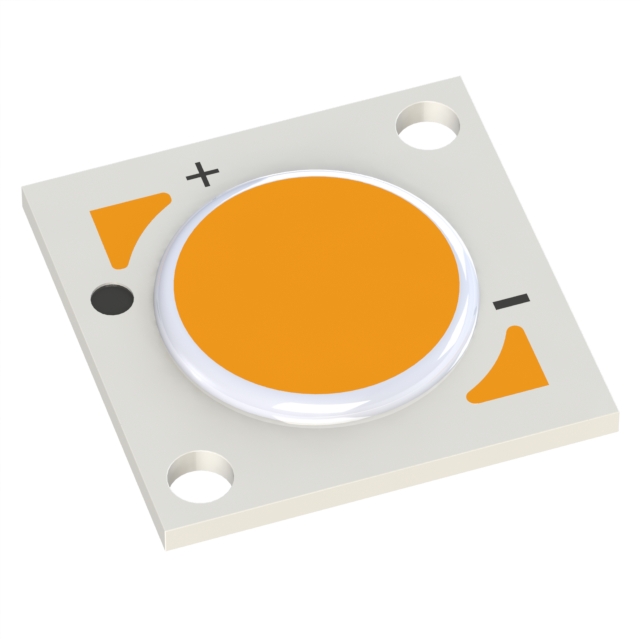

| Description: | LED COB CXM-7 COOL WHT SQU 5000K |
| Manufacturer | Luminus Devices |
| Encapsulation | Tray |
| Quantity | 400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Luminus Devices" |
| Color | White, Cool |
| Size / Dimension | 13.00mm L x 13.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 17.5V |
| Height | 1.37mm |
| Current - Test | 320mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 640mA |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 7.50mm Dia |
| Temperature - Test | 85°C |
|
