| Part number: | CXM-9-40-95-18-AC30-F4-3 |

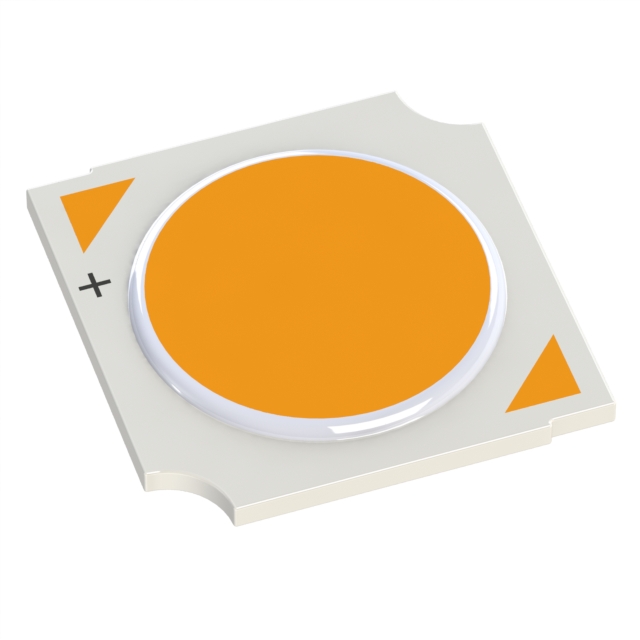

| Description: | LED COB CXM-9 GEN3 WHT SQ 4000K |
| Manufacturer | Luminus Devices |
| Encapsulation | Tray |
| Quantity | 80 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Luminus Devices" |
| Color | White, Neutral |
| Size / Dimension | 13.50mm L x 13.50mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 17V |
| Height | 1.37mm |
| Current - Test | 360mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.46A |
| Lumens/Watt @ Current - Test | 122 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 95 |
| Light Emitting Surface (LES) | 9.60mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1490lm (Typ) |
|
