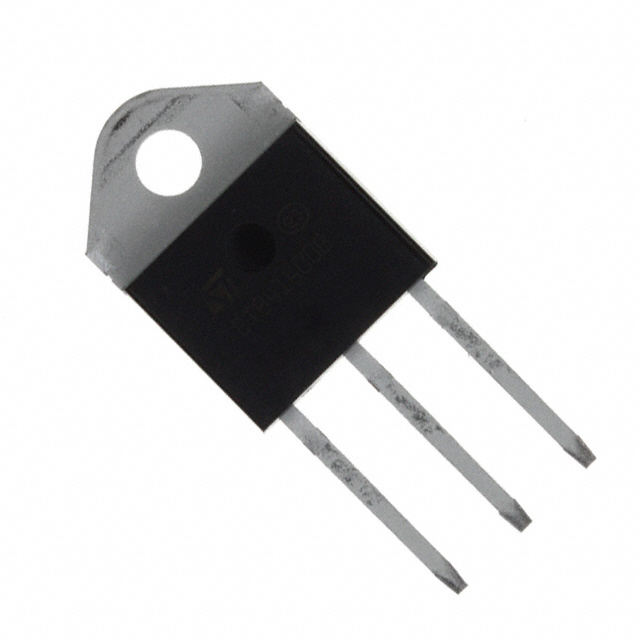

| Part number: | BTW68-200RG |
| Description: | SCR 200V 30A TOP3 |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |
| Package / Case | TOP-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 75 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 420A |
| Current - On State (It (AV)) (Max) | 19 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 2.1 V |
| Current - Off State (Max) | 20 µA |
| Supplier Device Package | TOP3 |
| Current - On State (It (RMS)) (Max) | 30 A |
| Voltage - Off State | 200 V |
|
