| Part number: | F-357X |

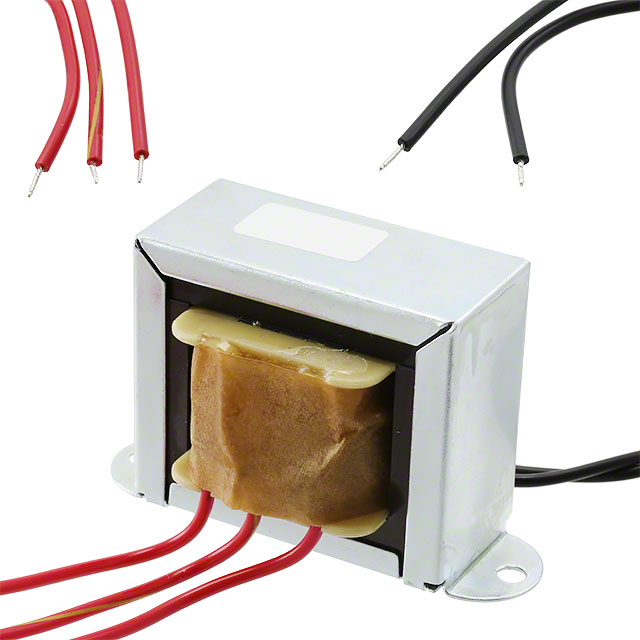

| Description: | PWR XFMR LAMINATED 25.2VA CHAS |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 89.56mm L x 50.80mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 1.5 lbs (680.4 g) |
| Termination Style | Wire Leads |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Single |
| Power - Max | 25.2VA |
| Voltage - Isolation | 1500Vrms |
| Current - Output (Max) | 1A |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 49.20mm |
| Voltage - Secondary (Full Load) | 25.2V |
| Center Tap | Yes |
|
