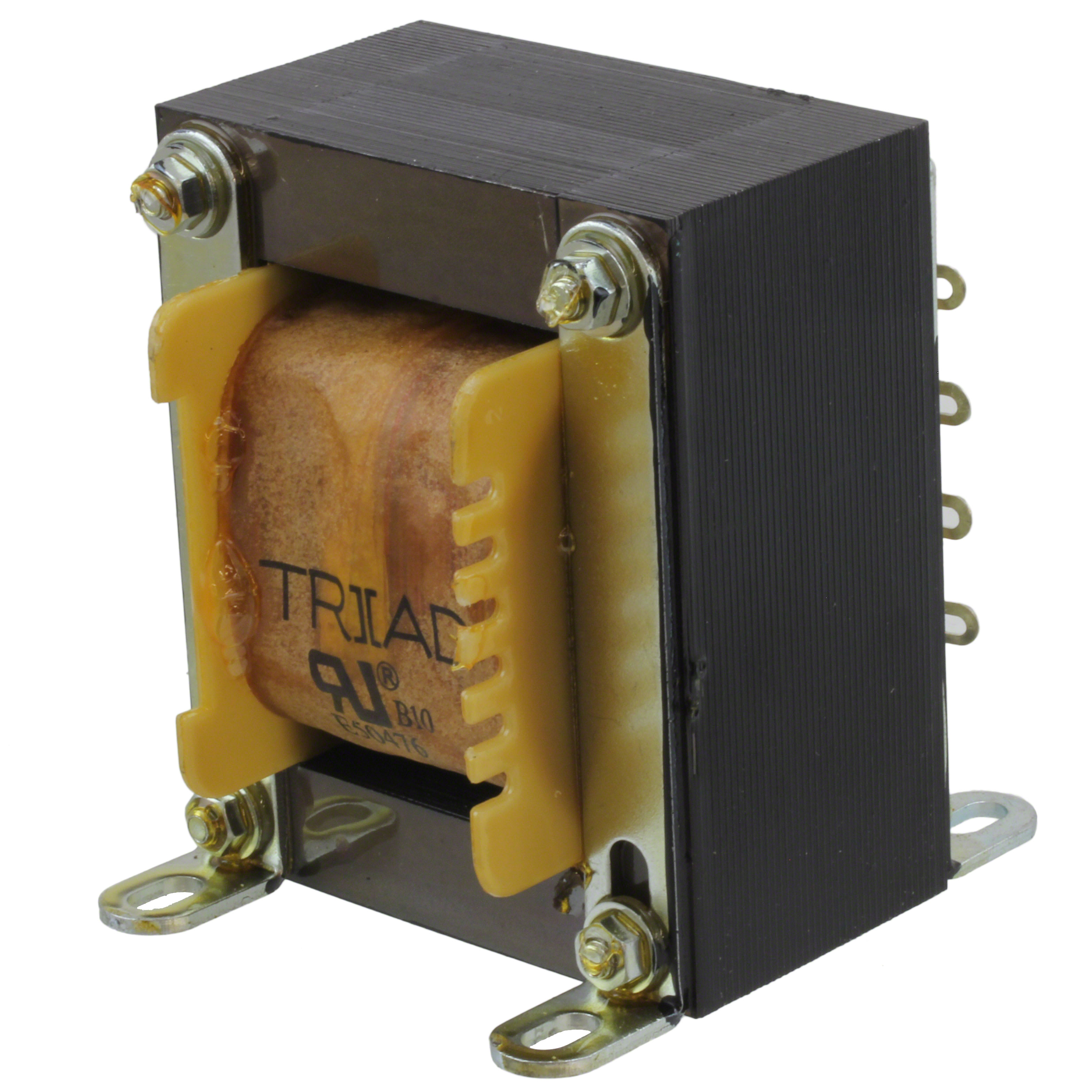

| Part number: | F-399U |
| Description: | PWR XFMR LAMINATED 192VA CHAS MT |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 88.90mm L x 79.38mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 5.9 lbs (2.7 kg) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 192VA |
| Voltage - Isolation | 1500Vrms |
| Current - Output (Max) | Parallel 12A, Series 6A |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 120.65mm |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Center Tap | No |
|
