| Part number: | F-7X |

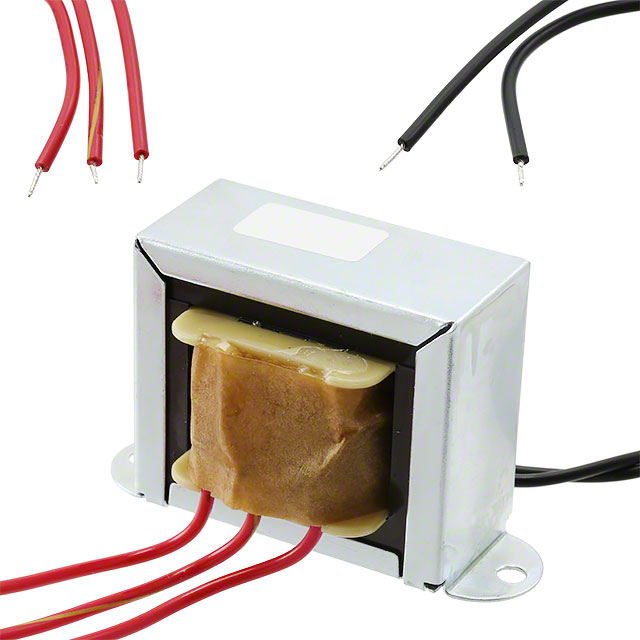

| Description: | PWR XFMR LAMINATED 15VA CHAS MT |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 134.92mm L x 50.80mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 1.3 lbs (589.7 g) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Power - Max | 15VA |
| Voltage - Isolation | 1500Vrms |
| Current - Output (Max) | 3A |
| Voltage - Primary | 115V |
| Height - Seated (Max) | 49.20mm |
| Voltage - Secondary (Full Load) | 5V |
| Center Tap | Yes |
|
