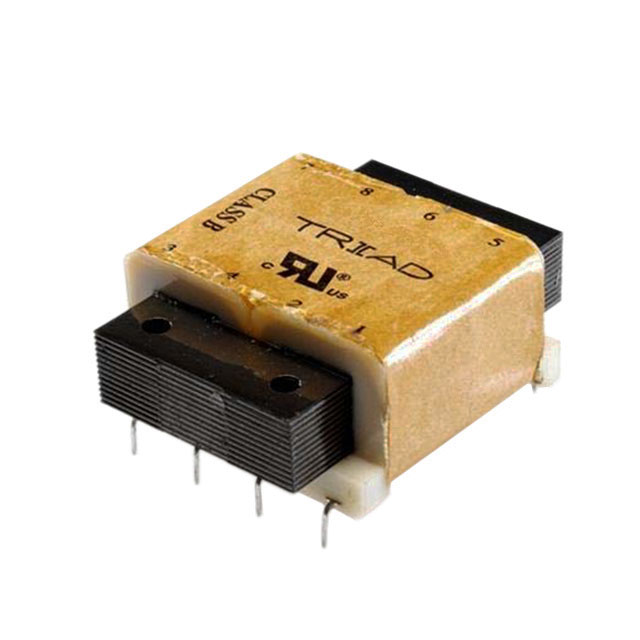

| Part number: | FP30-800 |
| Description: | PWR XFMR LAMINATED 24VA TH |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 72.90mm L x 57.15mm W |
| Mounting Type | Through Hole |
| Type | Laminated Core |
| Weight | 0.938 lb (425.47 g) |
| Termination Style | PC Pin |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 24VA |
| Voltage - Isolation | 2000Vrms |
| Current - Output (Max) | Parallel 1.6A, Series 800mA |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 34.93mm |
| Voltage - Secondary (Full Load) | Parallel 15V, Series 30V |
| Center Tap | No |
|
