| Part number: | FS120-100 |

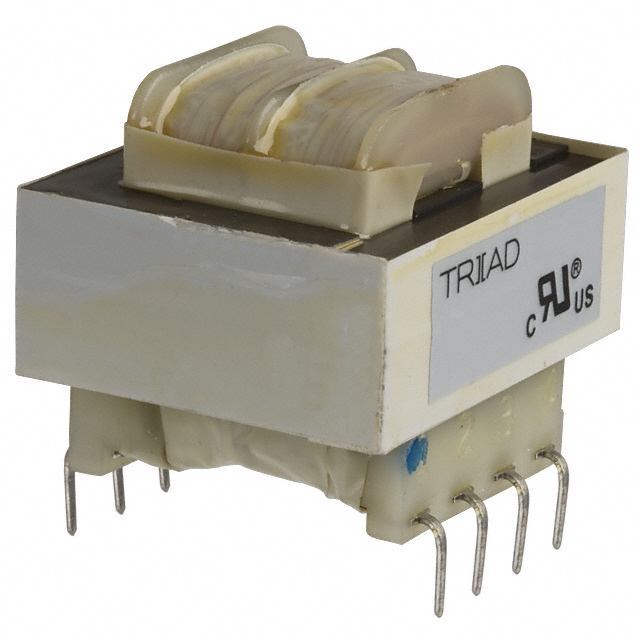

| Description: | PWR XFMR LAMINATED 12VA TH |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 47.63mm L x 39.67mm W |
| Mounting Type | Through Hole |
| Type | Laminated Core |
| Weight | 0.7 lb (317.51 g) |
| Termination Style | PC Pin |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 12VA |
| Voltage - Isolation | 2500Vrms |
| Current - Output (Max) | Parallel 200mA, Series 100mA |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 36.50mm |
| Voltage - Secondary (Full Load) | Parallel 60V, Series 120V |
| Center Tap | No |
|
