| Part number: | FS56-020 |

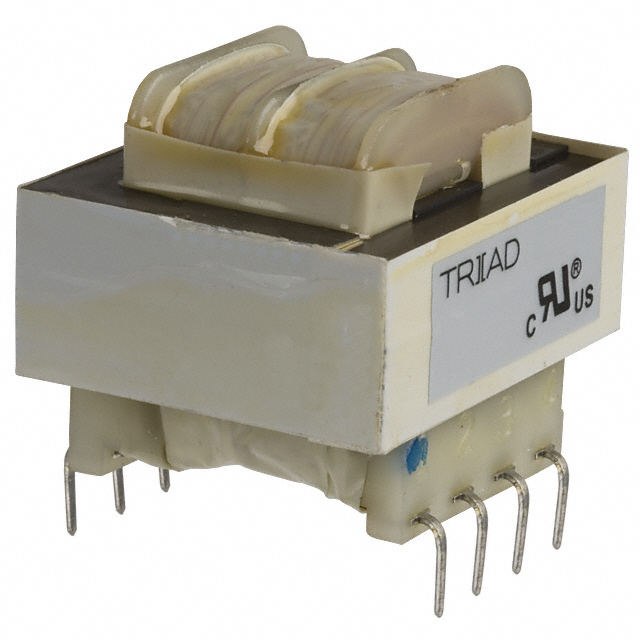

| Description: | PWR XFMR LAMINATED 1.1VA TH |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 34.93mm L x 28.58mm W |
| Mounting Type | Through Hole |
| Type | Laminated Core |
| Weight | 0.17 lb (77.11 g) |
| Termination Style | PC Pin |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 1.1VA |
| Voltage - Isolation | 2500Vrms |
| Current - Output (Max) | Parallel 40mA, Series 20mA |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 23.80mm |
| Voltage - Secondary (Full Load) | Parallel 28V, Series 56V |
| Center Tap | No |
|
