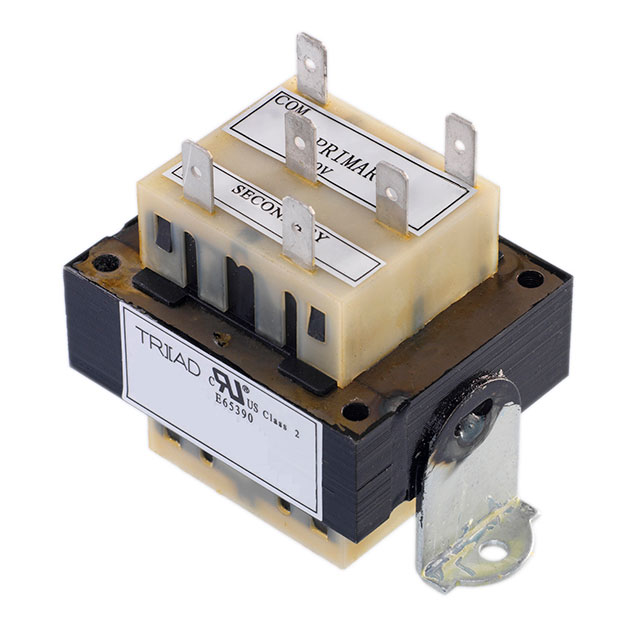

| Part number: | TCT50-06E07AE |
| Description: | PWR XFMR LAMINATED 50VA CHAS MT |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 92.46mm L x 66.04mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 2 lbs (907.2 g) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Single, Multiple Taps |
| Secondary Winding(s) | Single |
| Power - Max | 50VA |
| Voltage - Isolation | 1500VAC |
| Current - Output (Max) | 2.08A |
| Voltage - Primary | 120V, 240V |
| Height - Seated (Max) | 69.60mm |
| Voltage - Secondary (Full Load) | 24V |
| Center Tap | No |
|
