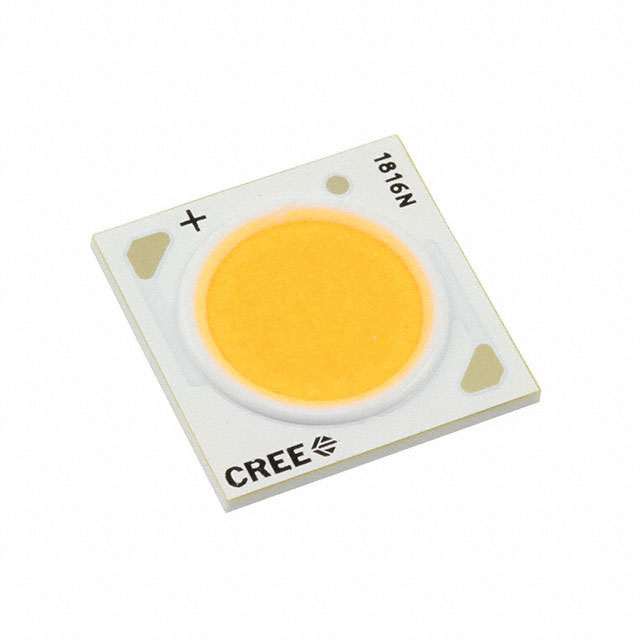

| Part number: | CXB1816-0000-000N0UP230G |
| Description: | LED COB XLAMP WARM WHT SQ 3000K |
| Manufacturer | Cree LED |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Cree LED" |
| Color | White, Warm |
| Size / Dimension | 17.85mm L x 17.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 35V |
| Height | 1.70mm |
| Current - Test | 450mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 900mA |
| Lumens/Watt @ Current - Test | 121 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 12.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1898lm (1830lm ~ 1965lm) |
|
