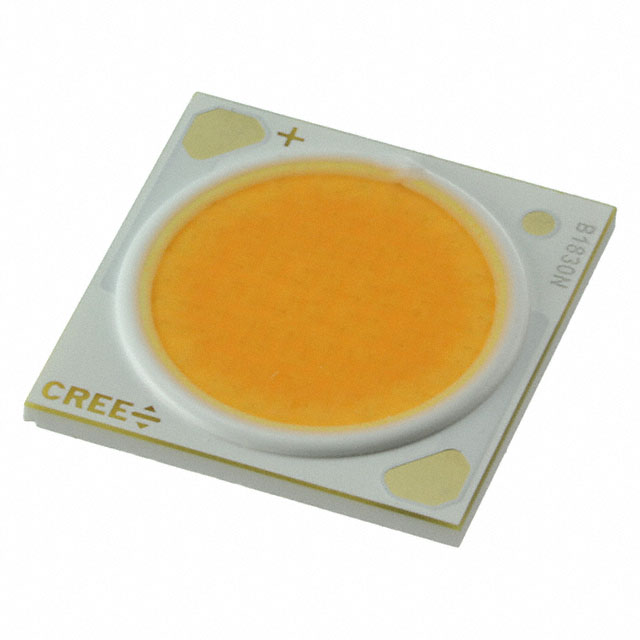

| Part number: | CXB1830-0000-000N0BV440E |
| Description: | LED COB XLAMP NEUT WHT SQU 4000K |
| Manufacturer | Cree LED |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Cree LED" |
| Color | White, Neutral |
| Size / Dimension | 17.85mm L x 17.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 35V |
| Height | 1.70mm |
| Current - Test | 800mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.4A |
| Lumens/Watt @ Current - Test | 145 lm/W |
| CCT (K) | 4000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 14.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 4703lm (4545lm ~ 4860lm) |
|
