| Part number: | CXB2540-0000-000N0HW2L7B |

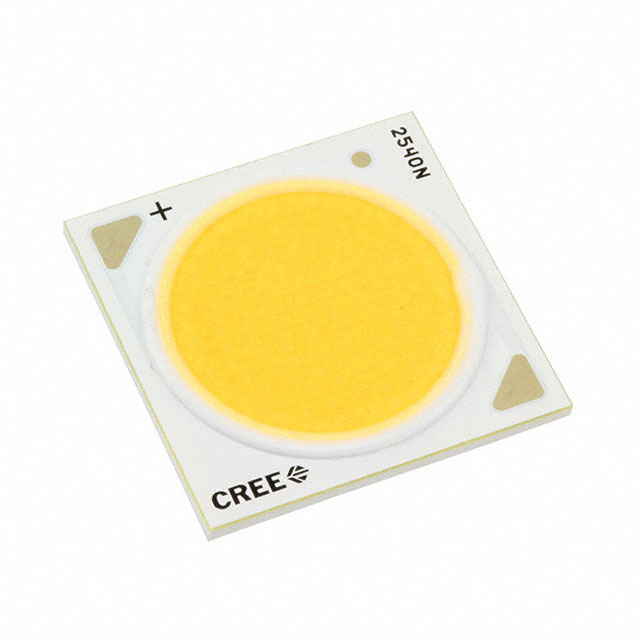

| Description: | LED COB XLAMP WARM WHT SQU 3000K |
| Manufacturer | Cree LED |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Cree LED" |
| Color | White, Warm |
| Size / Dimension | 23.85mm L x 23.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 34.8V |
| Height | 1.70mm |
| Current - Test | 1.1A |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 2.1A |
| Lumens/Watt @ Current - Test | 132 lm/W |
| CCT (K) | 3000K 2-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 19.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 5043lm (4860lm ~ 5225lm) |
|
