| Part number: | 3750-4 |

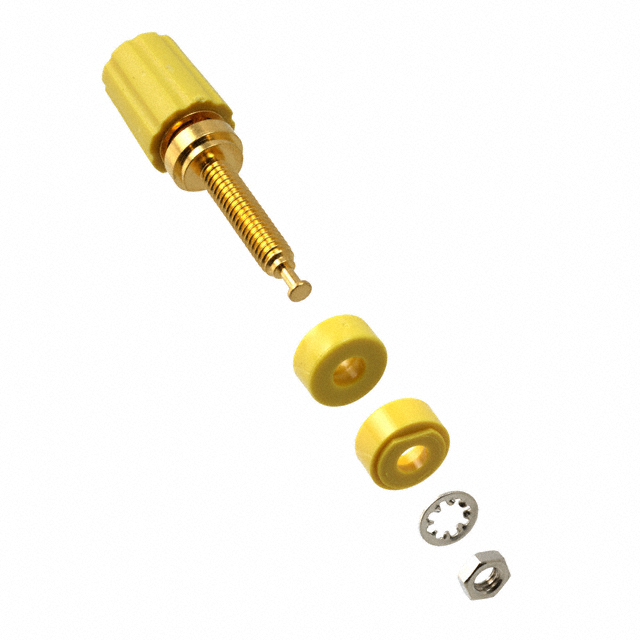

| Description: | CONN BIND POST KNURLED YELLOW |
| Manufacturer | Pomona Electronics |
| Encapsulation | Bulk |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pomona Electronics" |
| Color | Yellow |
| Voltage Rating | 33Vrms/70VDC |
| Type | Standard |
| Material - Body | Brass |
| Termination | Threaded and Turret |
| Panel Thickness | 0.070" ~ 0.250" (1.77mm ~ 6.35mm) |
| Plating - Body | Gold |
| Termination Thread | 8-32 |
| Head Style | Knurled |
| Material - Insulation | Polycarbonate (PC) |
| Cross Hole Diameter | 0.096" (2.43mm) |
| Head Size | 0.440" OD (11.18mm) |
| Nut Material | Brass |
| Nut Plating | Nickel |
| Current Rating (Amps) | 15 A |
|
