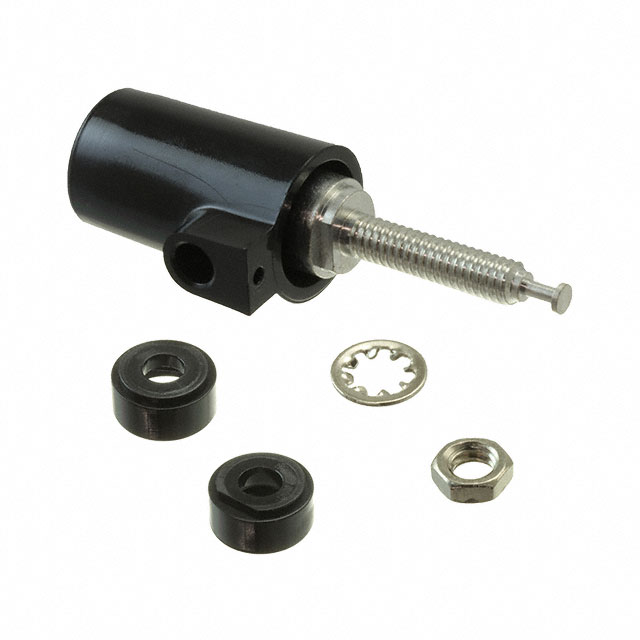

| Part number: | 4770-0 |
| Description: | CONN BIND POST SPRING-LOAD BLACK |
| Manufacturer | Pomona Electronics |
| Encapsulation | Bulk |
| Quantity | 2 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pomona Electronics" |
| Color | Black |
| Voltage Rating | 30VAC/60VDC |
| Type | Standard |
| Material - Body | Brass |
| Termination | Threaded and Turret |
| Panel Thickness | 0.063" ~ 0.375" (1.60mm ~ 9.53mm) |
| Plating - Body | Tin |
| Head Style | Smooth, Spring Loaded |
| Material - Insulation | Polycarbonate (PC) |
| Head Size | 0.530" OD (13.46mm) |
| Nut Material | Brass |
| Current Rating (Amps) | 15 A |
|
