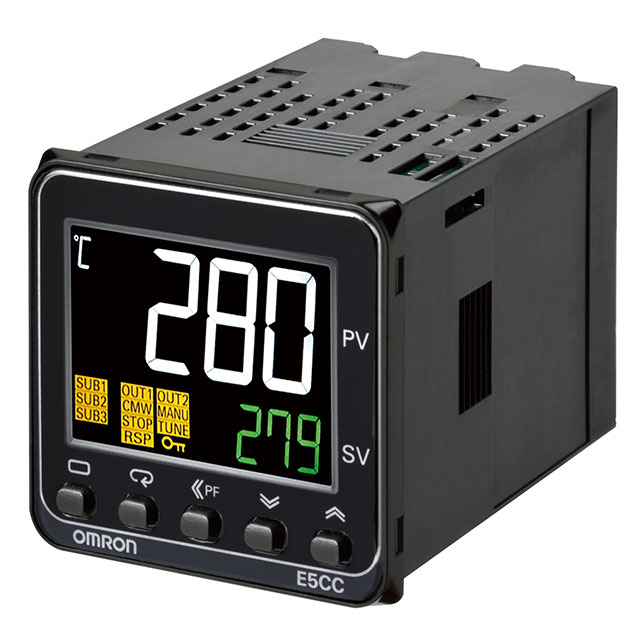

| Part number: | E5CC-QX2ASM-800 |
| Description: | CONTROL TEMP RELAY/VOLT 100-240V |
| Manufacturer | Omron Automation |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Omron Automation" |
| Display Type | LCD - Dual Color Characters, Backlight |
| Output Type | Relay (2), Voltage (External SSR) |
| Mounting Type | Panel Mount |
| Type | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) |
| Operating Temperature | -10°C ~ 55°C |
| Termination Style | Screw Terminal |
| Voltage - Supply | 100 ~ 240VAC |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Panel Cutout Dimensions | Square - 45.00mm x 45.00mm |
| Input Range | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC |
| Display Characters - Height | 0.600" (15.20mm), 0.280" (7.10mm) |
| Control Method | On/Off, Proportional (PID) |
| Number of Characters Per Row | 4, 4 |
|
