| Part number: | B66350G0000X187 |

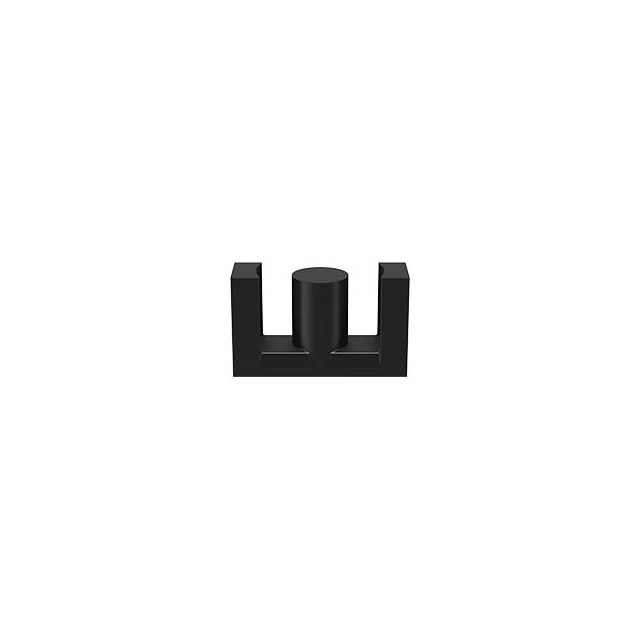

| Description: | FERRITE CORE ER N87 1PC |
| Manufacturer | TDK EPCOS |
| Encapsulation | Box |
| Quantity | 300 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Tolerance | -20%, +30% |
| Material | N87 |
| Length | 1.378" (35.00mm) |
| Width | 0.445" (11.30mm) |
| Height | 0.815" (20.70mm) |
| Core Type | ER |
| Supplier Device Package | ER 35 x 20 x 11 |
| Finish | Uncoated |
| Gap | Ungapped |
| Effective Permeability (µe) | 1735.0 |
| Core Factor (ΣI/A) mm⁻¹ | 0.81 |
| Effective Length (le) mm | 89.6 |
| Effective Area (Ae) mm² | 111.0 |
| Minimum Core Cross Section (Amin) mm² | 101.0 |
| Effective Magnetic Volume (Ve) mm³ | 9950.0 |
|
