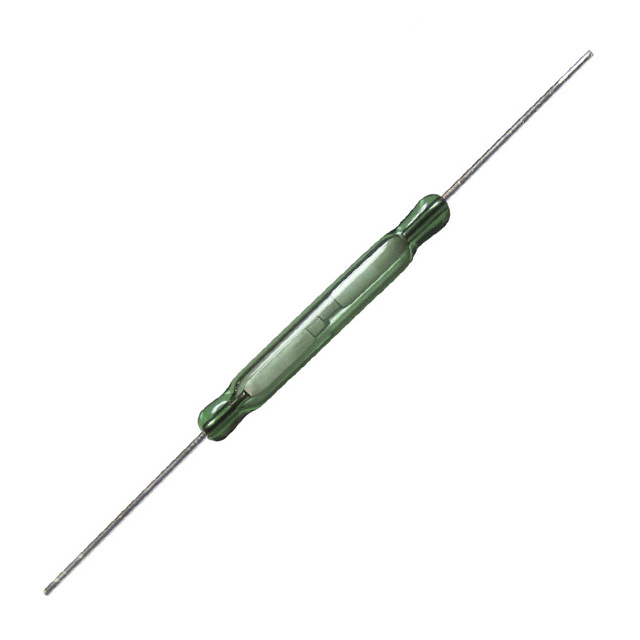

| Part number: | RI-03GP1520 |
| Description: | SWITCH REED SPST-NO 500MA 140V |
| Manufacturer | Comus International |
| Encapsulation | Bulk |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Comus International" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -55°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 1.811" (46.00mm) |
| Power - Rated | 10W |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 0.25 ms |
| Release Time | 0.03 ms |
| Size - Body | 0.100" Dia x 0.591" L (2.54mm x 15.00mm) |
| Operate Range | 15 ~ 20AT |
| Current - Carry | 1.5A (DC) |
| Voltage - Switching AC | 140 V |
| Capacitance | 0.3 pF |
|
