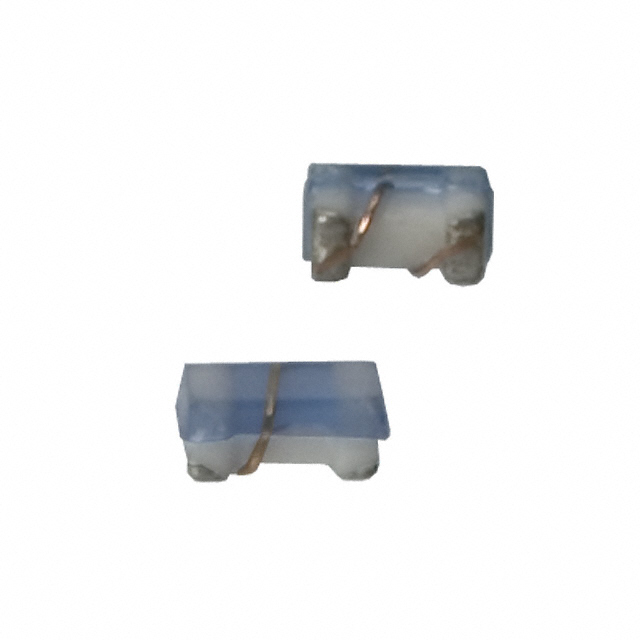

| Part number: | PE-0402CD8N2JTG |
| Description: | FIXED IND 8.2NH 680MA 104MOHM SM |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Tolerance | ±5% |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.047" L x 0.026" W (1.19mm x 0.66mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 104mOhm Max |
| Q @ Freq | 25 @ 250MHz |
| Frequency - Self Resonant | 4.4GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 250 MHz |
| Supplier Device Package | 0402 (1005 Metric) |
| Height - Seated (Max) | 0.024" (0.61mm) |
| Inductance | 8.2 nH |
| Current Rating (Amps) | 680 mA |
|
