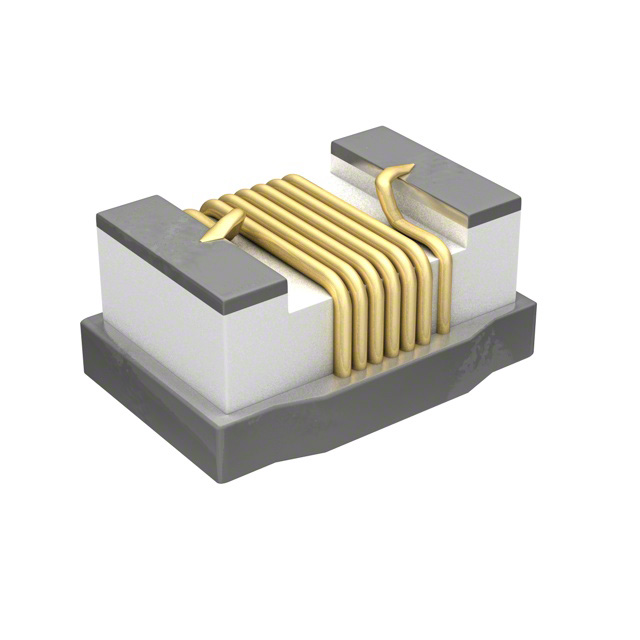

| Part number: | PE-0805CM331JTT |
| Description: | FIXED IND 330NH 300MA 1.28OHM SM |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Tolerance | ±5% |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.090" L x 0.066" W (2.29mm x 1.68mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 1.28Ohm Max |
| Q @ Freq | 40 @ 100MHz |
| Frequency - Self Resonant | 775MHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.062" (1.58mm) |
| Inductance | 330 nH |
| Current Rating (Amps) | 300 mA |
|
