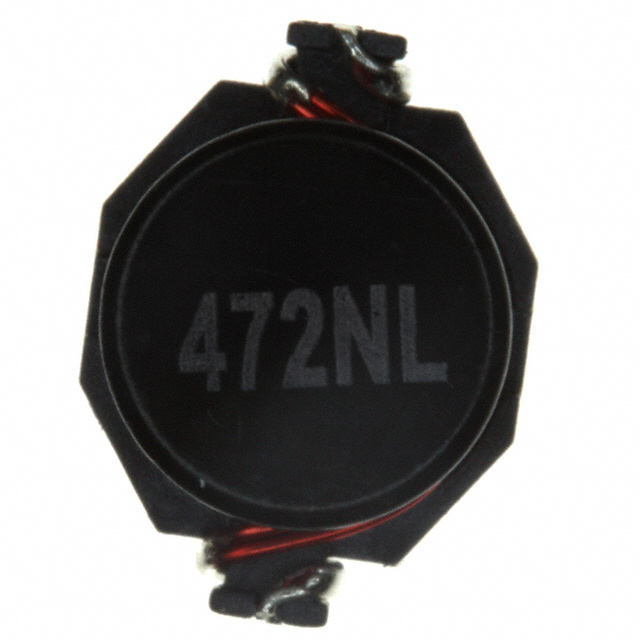

| Part number: | P0751.472NLT |
| Description: | FIXED IND 4.7UH 4.8A 33 MOHM SMD |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 800 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 130°C |
| DC Resistance (DCR) | 33mOhm Max |
| Current - Saturation (Isat) | 5.4A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.215" (5.46mm) |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 4.8 A |
|
