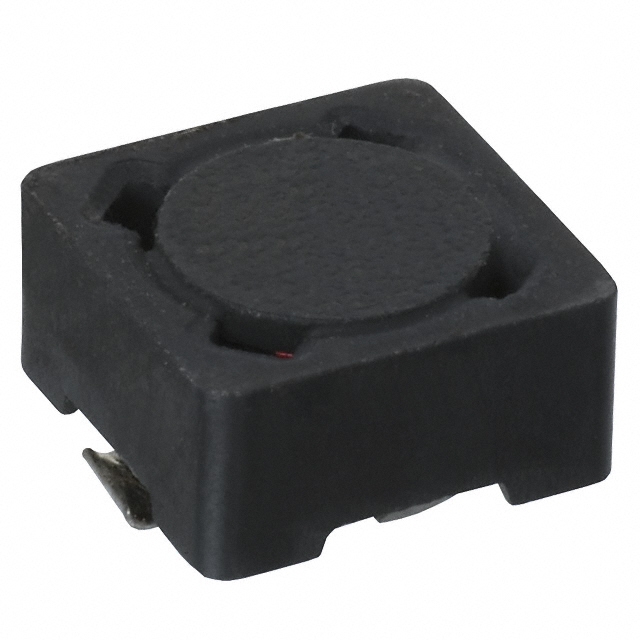

| Part number: | P1167.184NLT |
| Description: | FIXED IND 180UH 470MA 820MOHM SM |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 900 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.297" L x 0.297" W (7.54mm x 7.54mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 130°C |
| DC Resistance (DCR) | 820mOhm Max |
| Frequency - Self Resonant | 4.5MHz |
| Current - Saturation (Isat) | 470mA |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Inductance | 180 µH |
| Current Rating (Amps) | 470 mA |
|
