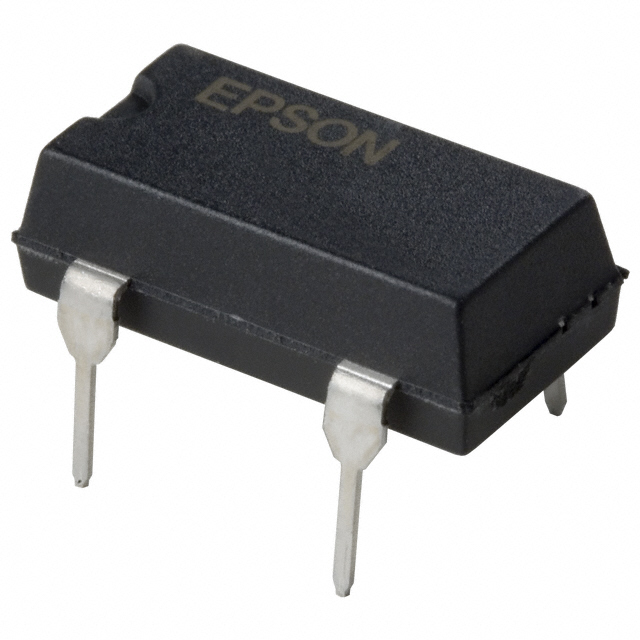

| Part number: | SGR-8002DC-PCC |
| Description: | XTAL OSC PRG XO CMOS 3.3V 100PPM |
| Manufacturer | Epson |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Epson" |
| Package / Case | 8-DIP, 4 Leads (Half Size) |
| Size / Dimension | 0.539" L x 0.260" W (13.70mm x 6.60mm) |
| Mounting Type | Through Hole |
| Output | CMOS |
| Function | Enable/Disable |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Type | XO (Standard) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±100ppm |
| Voltage - Supply | 3.3V |
| Current - Supply (Max) | 28mA |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Available Frequency Range | 1 MHz ~ 125 MHz |
| Current - Supply (Disable) (Max) | 16 mA |
| Base Resonator | Crystal |
|
