| Part number: | 3244245 |

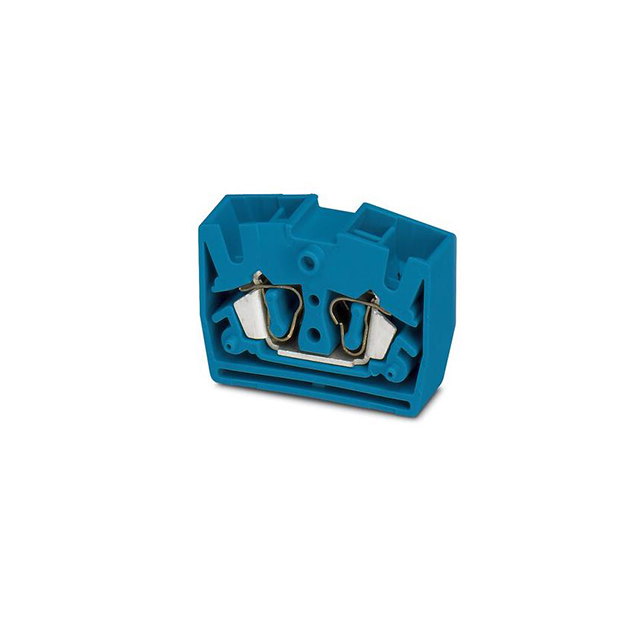

| Description: | MINI FEED-THROUGH TERMINAL BLOCK |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Mounting Type | Direct Mount |
| Length | 1.260" (32.00mm) |
| Type | Middle |
| Termination Style | Push In, Spring |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 10.4mm |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
| Height (Max) | 0.866" (22.00mm) |
| Housing Color | Blue |
| Stripping Length | 8mm |
| Current - UL | 20 A |
| Current - IEC | 24 A |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Number of Positions | 4 |
|
