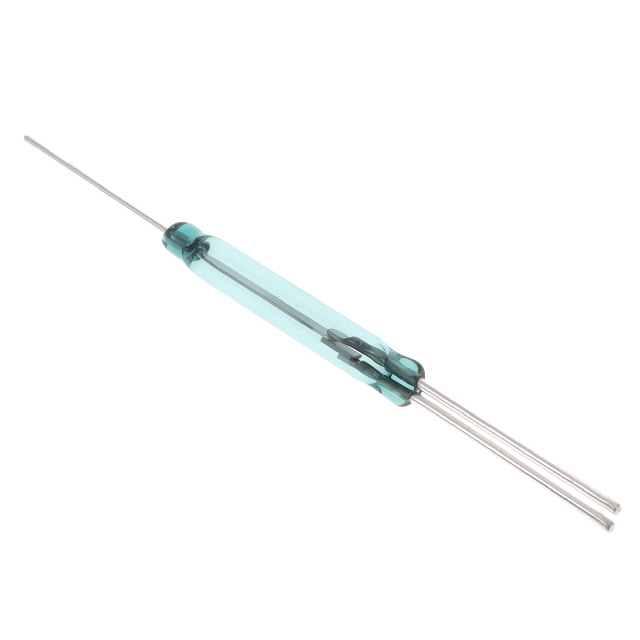

| Part number: | DRS-DTH-75-80 |
| Description: | SWITCH REED SPDT 350MA 350V |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Mounting Type | Through Hole |
| Circuit | SPDT |
| Type | Glass Body Reed |
| Operating Temperature | -20°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 3.375" (85.73mm) |
| Power - Rated | 30W |
| Current - Switching | 350mA (AC), 500mA (DC) |
| Voltage - Switching DC | 500 V |
| Operate Time | 4.5 ms |
| Release Time | 7 ms |
| Size - Body | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) |
| Operate Range | 75 ~ 80AT |
| Current - Carry | 3A (DC) |
| Voltage - Switching AC | 350 V |
| Capacitance | 2 pF |
|
