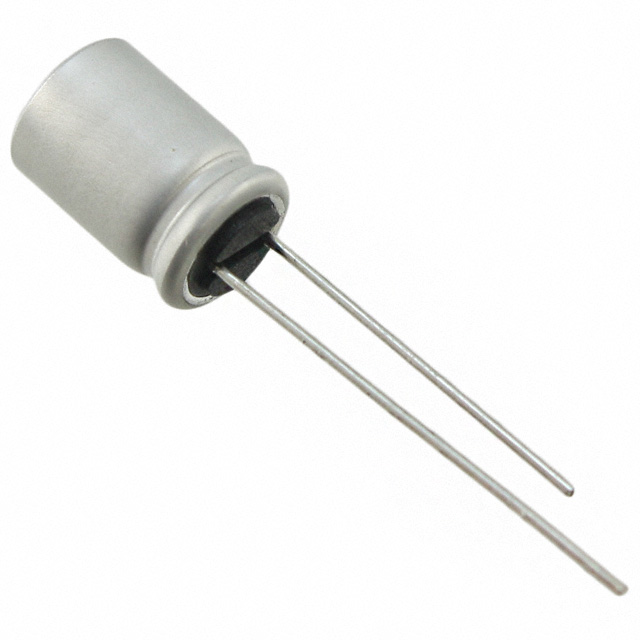

| Part number: | APS-6R3ELL391MHB5S |
| Description: | CAP ALUM POLY 390UF 20% 6.3V T/H |
| Manufacturer | United Chemi-Con |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Mounting Type | Through Hole |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Capacitance | 390 µF |
| Voltage - Rated | 6.3 V |
| Ripple Current @ High Frequency | 4.77 A @ 100 kHz |
|
