| Part number: | 3002777 |

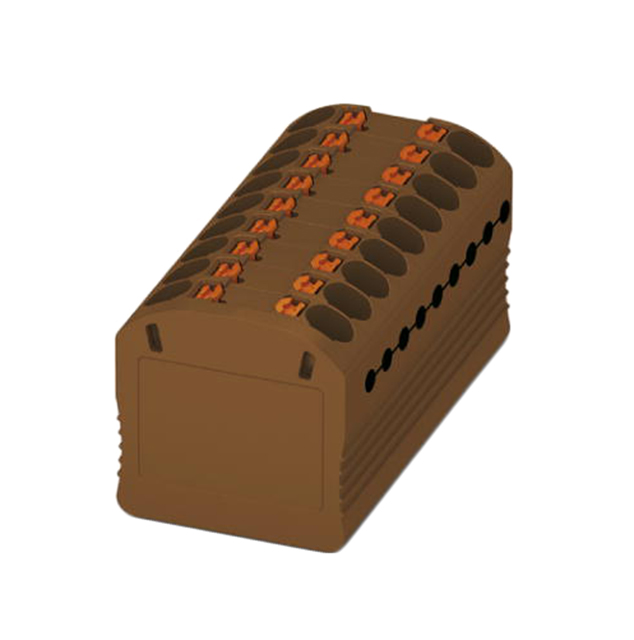

| Description: | DISTRIBUTION BLOCK BROWN |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Block of 3 |
| Mounting Type | Direct Mount |
| Length | 0.850" (21.60mm) |
| Type | Middle |
| Operating Temperature | -60°C ~ 130°C |
| Termination Style | Push In, Spring |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 37.4mm |
| Wire Gauge or Range - AWG | 14-26 AWG |
| Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Height (Max) | 0.697" (17.70mm) |
| Housing Color | Brown |
| Stripping Length | 10mm |
| Current - UL | 15 A |
| Current - IEC | 17.5 A |
| Voltage - IEC | 450 V |
| Voltage - UL | 300 V |
| Number of Positions | 18 |
|
