| Part number: | 3273192 |

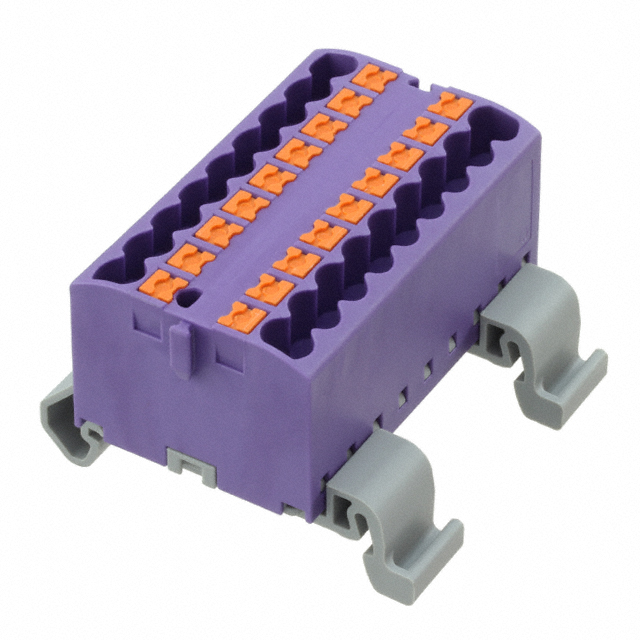

| Description: | DISTRIBUTION BLOCK VIOLET |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 8 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Block of 3 |
| Mounting Type | DIN Rail |
| Length | 1.799" (45.70mm) |
| Type | Middle |
| Termination Style | Push In, Spring |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 46.5mm |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.14-4mm² |
| Height (Max) | 1.508" (38.30mm) |
| Housing Color | Violet |
| Stripping Length | 10mm |
| Current - UL | 5 A |
| Current - IEC | 24 A |
| Voltage - IEC | 500 V |
| Voltage - UL | 600 V |
| Number of Positions | 18 |
|
