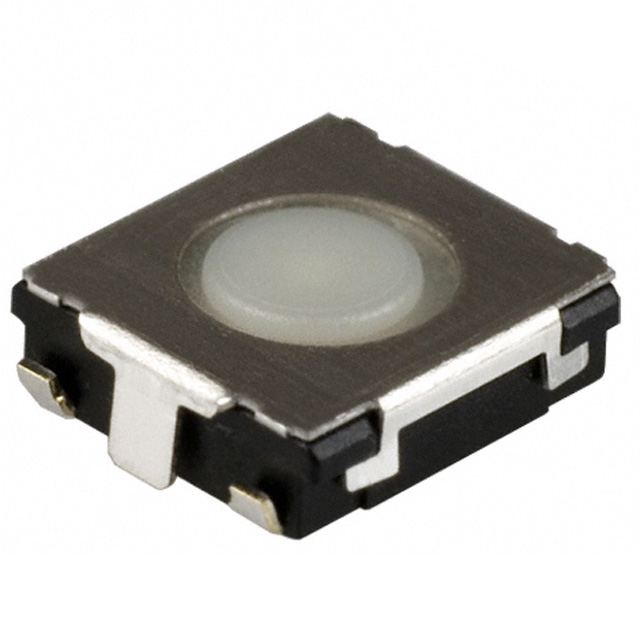

| Part number: | EVQ-Q2K01W |
| Description: | SWITCH TACTILE SPST-NO 0.02A 15V |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | J Lead |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Actuator Type | Standard |
| Operating Force | 130gf |
| Outline | 6.50mm x 6.00mm |
| Actuator Height off PCB, Vertical | 2.00mm |
| Actuator Orientation | Top Actuated |
|
