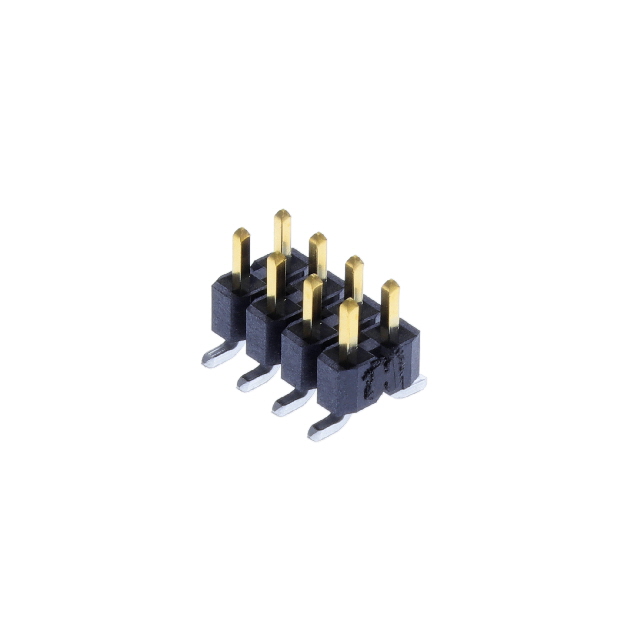

| Part number: | TSM-104-04-S-DV |
| Description: | CONN HEADER SMD 8POS 2.54MM |
| Manufacturer | Samtec, Inc. |
| Encapsulation | Tube |
| Quantity | 57 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Samtec, Inc." |
| Connector Type | Header, Cuttable |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Insulation Height | 0.100" (2.54mm) |
| Shrouding | Unshrouded |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Length - Mating | 0.120" (3.05mm) |
|
