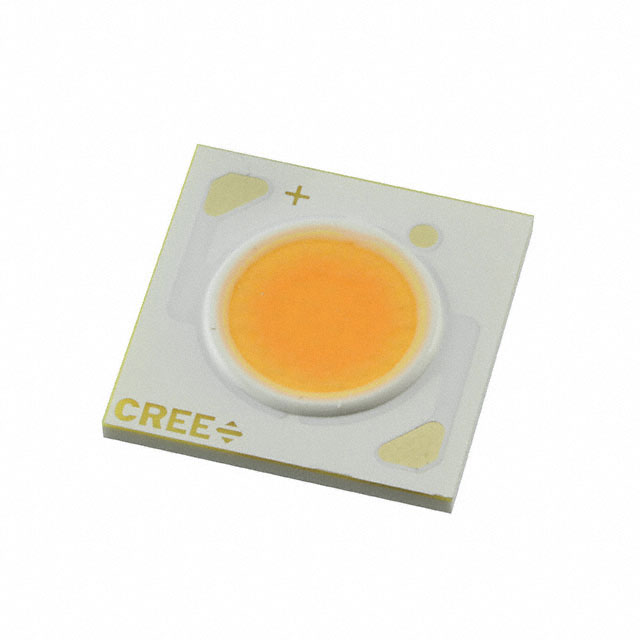

| Part number: | CXB1507-0000-000F0ZF230H |
| Description: | LED COB XLAMP WARM WHT SQ 3000K |
| Manufacturer | Cree LED |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Cree LED" |
| Color | White, Warm |
| Size / Dimension | 15.85mm L x 15.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 18V |
| Height | 1.70mm |
| Current - Test | 400mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 750mA |
| Lumens/Watt @ Current - Test | 105 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 95 |
| Light Emitting Surface (LES) | 8.90mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 757lm (Typ) |
|
