| Part number: | BXRC-57C2001-B-73 |

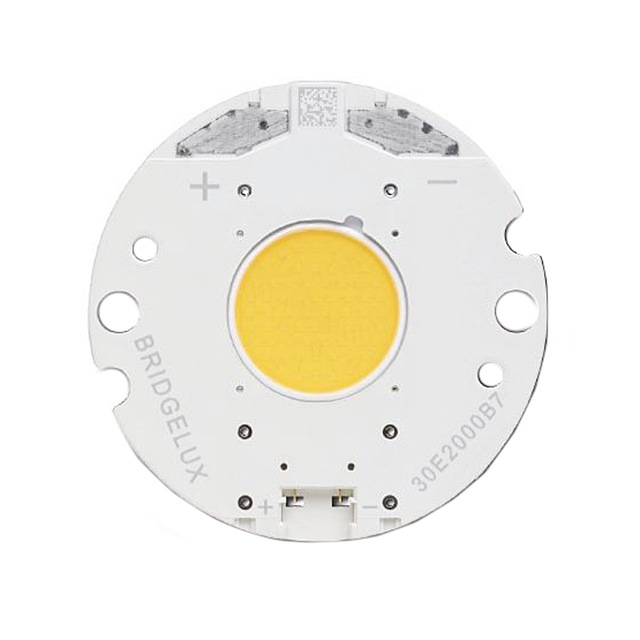

| Description: | LED COB VERO 13 WHT RND 5700K |
| Manufacturer | Bridgelux, Inc. |
| Encapsulation | Tube |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bridgelux, Inc." |
| Color | White, Cool |
| Size / Dimension | 36.20mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 33.9V |
| Height | 1.90mm |
| Current - Test | 450mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 900mA |
| Lumens/Watt @ Current - Test | 157 lm/W |
| CCT (K) | 5700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 13.20mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 2395lm (Typ) |
|
