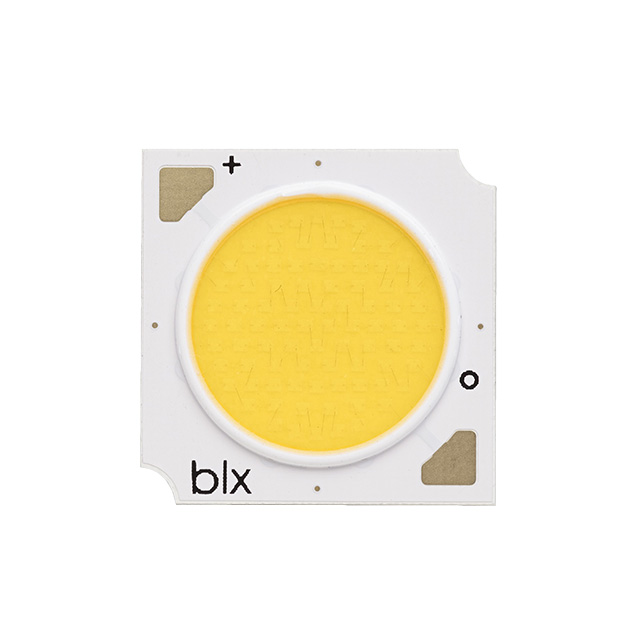

| Part number: | BXRE-17E2000-C-74 |
| Description: | LED COB V13 WARM WHT SQU 1750K |
| Manufacturer | Bridgelux, Inc. |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bridgelux, Inc." |
| Color | White, Warm |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 34.8V |
| Height | 1.70mm |
| Current - Test | 630mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.26A |
| Lumens/Watt @ Current - Test | 86 lm/W |
| CCT (K) | 1750K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 14.00mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1879lm (Typ) |
|
