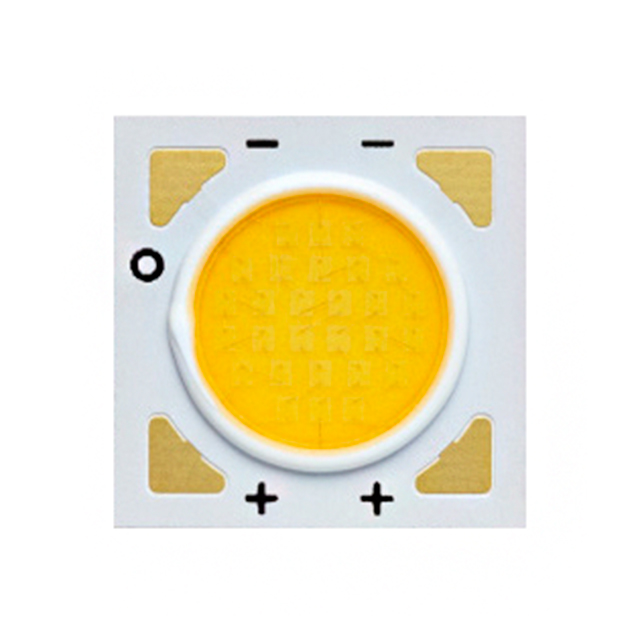

| Part number: | BXRE-30G0800-D-72 |
| Description: | LED COB V8 WARM WHT SQUARE 3000K |
| Manufacturer | Bridgelux, Inc. |
| Encapsulation | Tube |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bridgelux, Inc." |
| Color | White, Warm |
| Size / Dimension | 12.50mm L x 12.50mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 16.7V |
| Height | 1.70mm |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 117 lm/W |
| CCT (K) | 3000K 2-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 8.10mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 681lm (Typ) |
|
