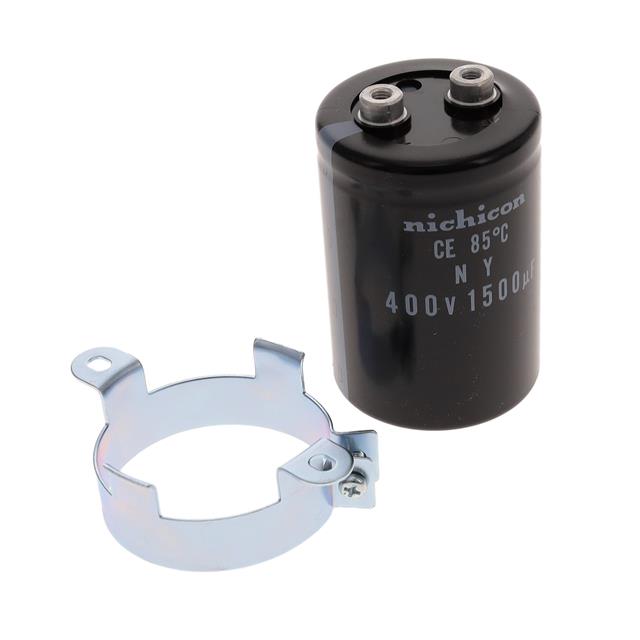

| Part number: | LNY2G152MSEFBB |
| Description: | CAP ALUM 1500UF 20% 400V SCREW |
| Manufacturer | Nichicon |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.866" (22.00mm) |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Height - Seated (Max) | 3.071" (78.00mm) |
| Capacitance | 1500 µF |
| Voltage - Rated | 400 V |
| Ripple Current @ Low Frequency | 8.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.34 A @ 10 kHz |
|
