| Part number: | ULD2E4R7MPD1TA |

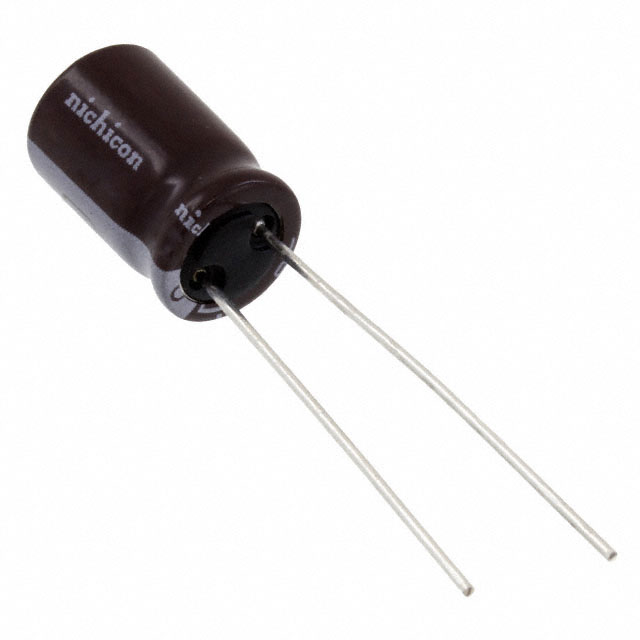

| Description: | CAP ALUM 4.7UF 20% 250V RADIAL |
| Manufacturer | Nichicon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Capacitance | 4.7 µF |
| Voltage - Rated | 250 V |
| Ripple Current @ Low Frequency | 53 mA @ 120 Hz |
| Ripple Current @ High Frequency | 106 mA @ 100 kHz |
|
