| Part number: | USP0J101MDD1TE |

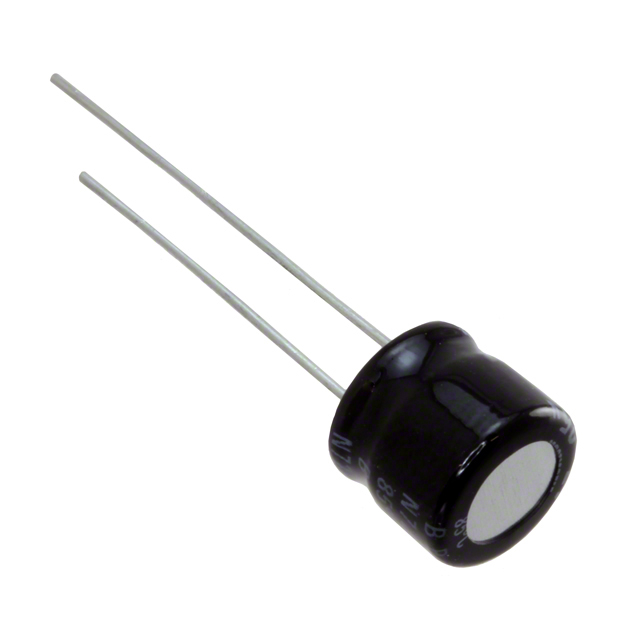

| Description: | CAP ALUM 100UF 20% 6.3V RADIAL |
| Manufacturer | Nichicon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Polarization | Bi-Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Capacitance | 100 µF |
| Voltage - Rated | 6.3 V |
| Ripple Current @ Low Frequency | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 142.5 mA @ 10 kHz |
|
