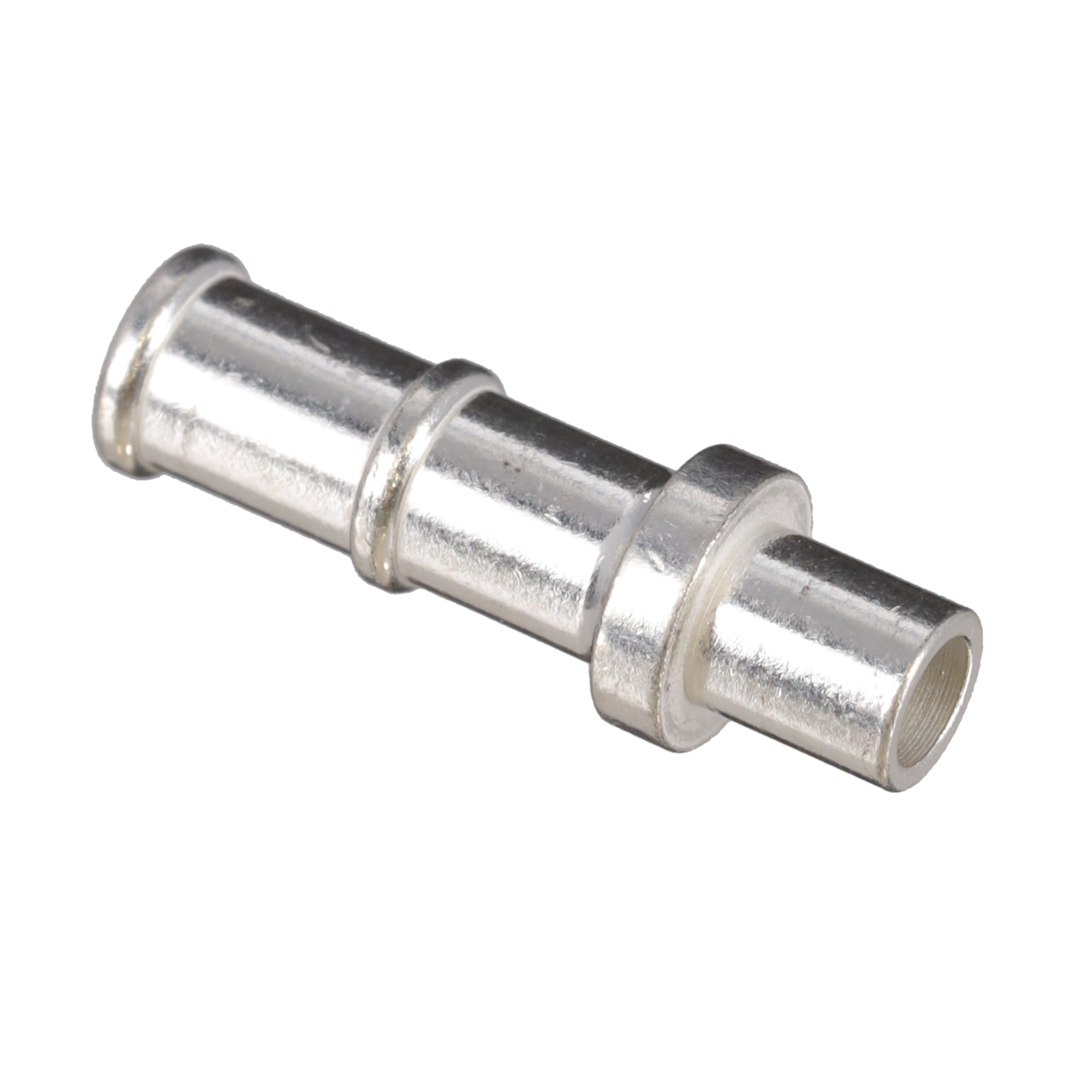

| Part number: | 2821-3-00-80-00-00-07-0 |
| Description: | TERM TURRET SNG |
| Manufacturer | Mill-Max |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mill-Max" |
| Contact Finish | Tin |
| Mounting Type | Through Hole |
| Insulation | Non-Insulated |
| Board Thickness | 0.094" (2.39mm) |
| Terminal Type | Single End |
| Flange Diameter | 0.187" (4.75mm) |
| Length - Overall | 0.563" (14.30mm) |
| Termination | Swage |
| Length - Above Board | 0.422" (10.72mm) |
| Mounting Hole Diameter | 0.125" (3.18mm) |
| Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Material | Brass Alloy |
| Diameter - Turret Head | 0.152" (3.86mm) |
| Number of Turrets | Double |
| Length - Below Flange | 0.141" (3.58mm) |
| Staking Side OD | 0.122" (3.10mm) |
| Staking Side ID | 0.089" (2.26mm) |
|
