| Part number: | 02200003DRT2P |

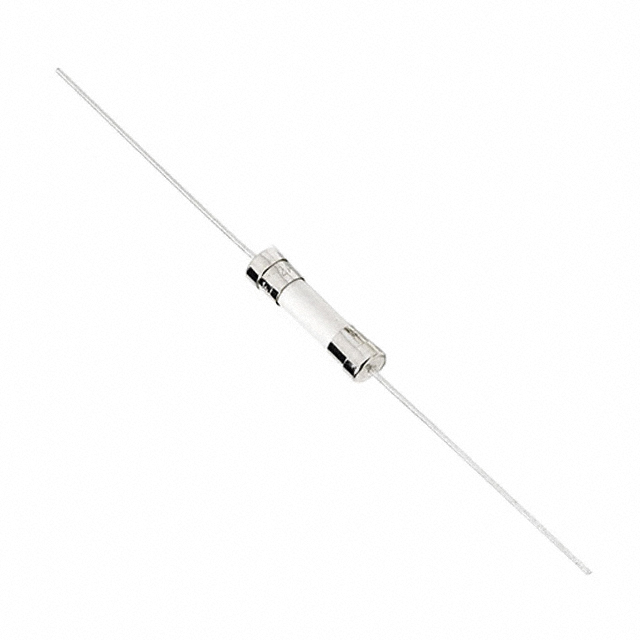

| Description: | FUSE GLASS 350MA 250VAC 2AG |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | 2AG, 5mm x 15mm (Axial) |
| Size / Dimension | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Slow Blow |
| Approval Agency | CE, CSA, PSE, UL |
| DC Cold Resistance | 1.31 Ohms |
| Breaking Capacity @ Rated Voltage | 35A |
| Current Rating (Amps) | 350 mA |
| Voltage Rating - AC | 250 V |
| Melting I²t | 0.49 |
|
