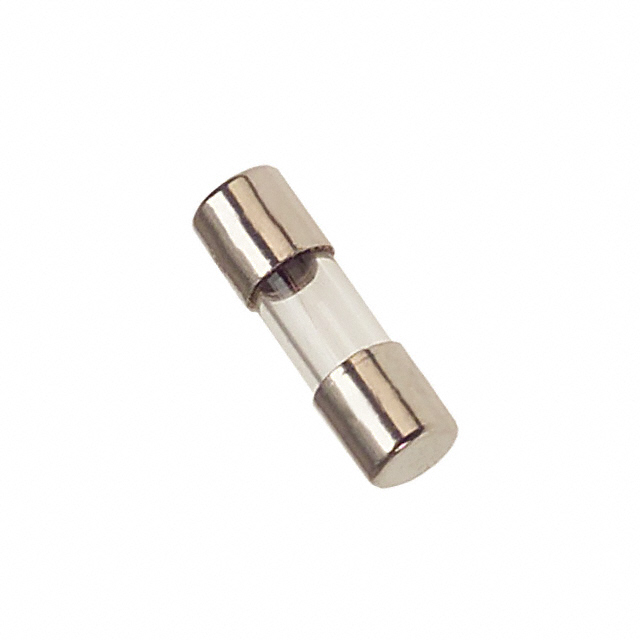

| Part number: | 0225.100HXP |
| Description: | FUSE GLASS 100MA 250VAC 125VDC |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | 2AG, 5mm x 15mm |
| Size / Dimension | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Requires Holder |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| DC Cold Resistance | 6.15 Ohms |
| Breaking Capacity @ Rated Voltage | 35A AC, 10kA DC |
| Current Rating (Amps) | 100 mA |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Melting I²t | 0.00075 |
|
