| Part number: | 0230.500DRT2P |

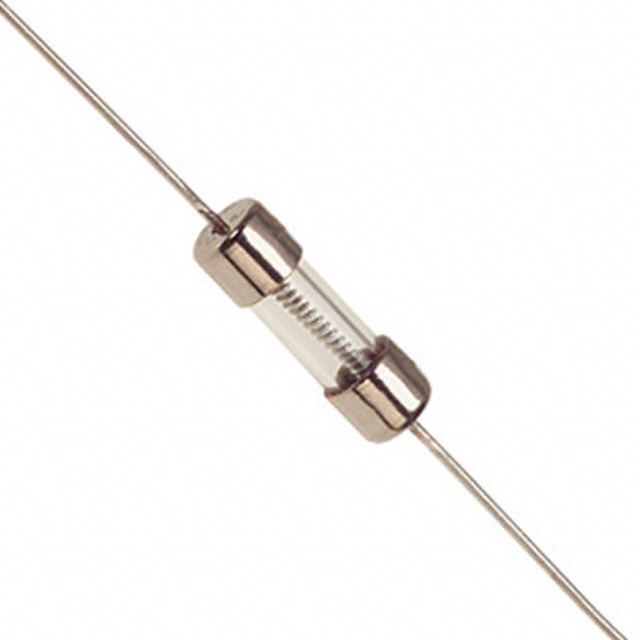

| Description: | FUSE GLASS 500MA 250VAC 125VDC |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Size / Dimension | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Slow Blow |
| Approval Agency | CE, CSA, UL |
| DC Cold Resistance | 0.6935 Ohms |
| Breaking Capacity @ Rated Voltage | 35A AC, 10kA DC |
| Current Rating (Amps) | 500 mA |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Melting I²t | 1.16 |
|
