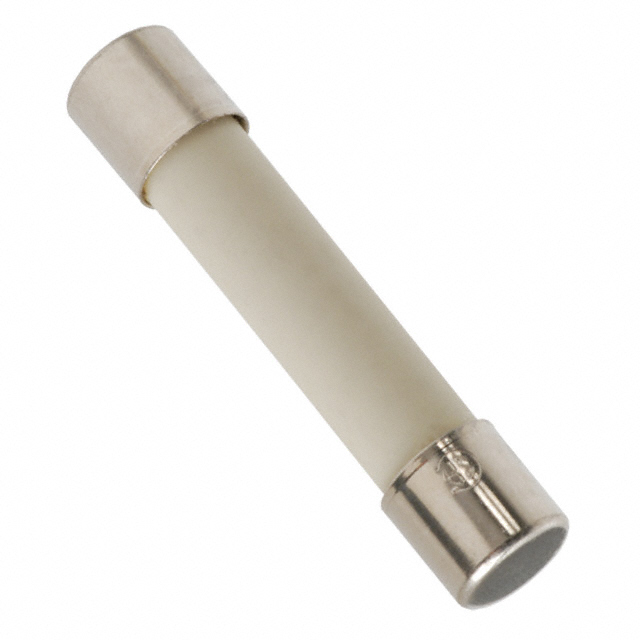

| Part number: | 0322008.HXP |
| Description: | FUSE CERM 8A 250VAC 125VDC 3AB |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Size / Dimension | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Requires Holder |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | CE, cULus, PSE |
| DC Cold Resistance | 0.0088 Ohms |
| Breaking Capacity @ Rated Voltage | 100A |
| Current Rating (Amps) | 8 A |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Melting I²t | 16.45 |
|
