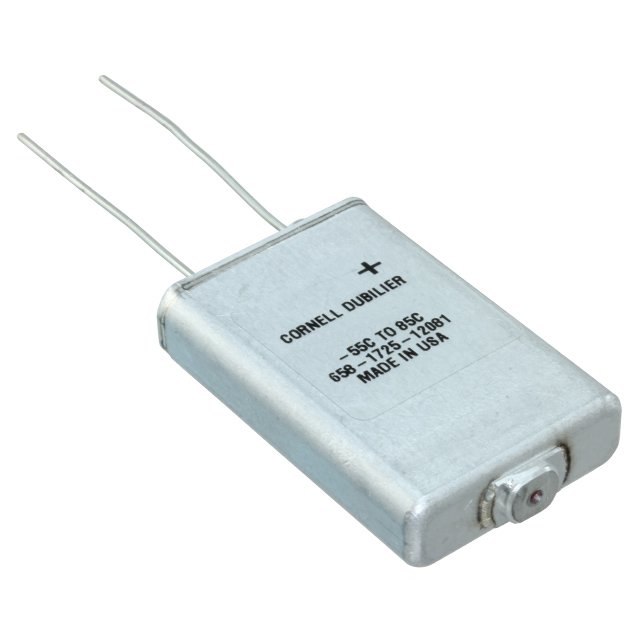

| Part number: | THA311M250AD0C |
| Description: | CAP ALUM 310UF 20% 250V FLATPACK |
| Manufacturer | Illinois Capacitor (Cornell Dubilier Electronics) |
| Encapsulation | Bulk |
| Quantity | 60 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Illinois Capacitor (Cornell Dubilier Electronics)" |
| Tolerance | ±20% |
| Package / Case | FlatPack |
| Size / Dimension | 2.618" L x 0.953" W (66.50mm x 24.20mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| ESR (Equivalent Series Resistance) | 410mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Capacitance | 310 µF |
| Voltage - Rated | 250 V |
| Ripple Current @ Low Frequency | 1.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.87 A @ 20 kHz |
|
