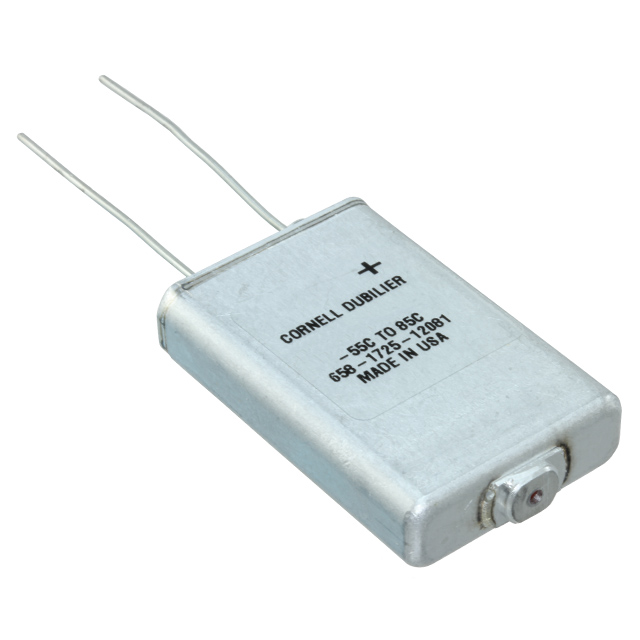

| Part number: | THAS852M010AA0C |
| Description: | CAP ALUM 8500UF 20% 10V FLATPACK |
| Manufacturer | Illinois Capacitor (Cornell Dubilier Electronics) |
| Encapsulation | Bulk |
| Quantity | 60 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Illinois Capacitor (Cornell Dubilier Electronics)" |
| Tolerance | ±20% |
| Package / Case | FlatPack |
| Size / Dimension | 1.433" L x 1.000" W (36.40mm x 25.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| ESR (Equivalent Series Resistance) | 120mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Height - Seated (Max) | 0.366" (9.30mm) |
| Capacitance | 8500 µF |
| Voltage - Rated | 10 V |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 20 kHz |
|
