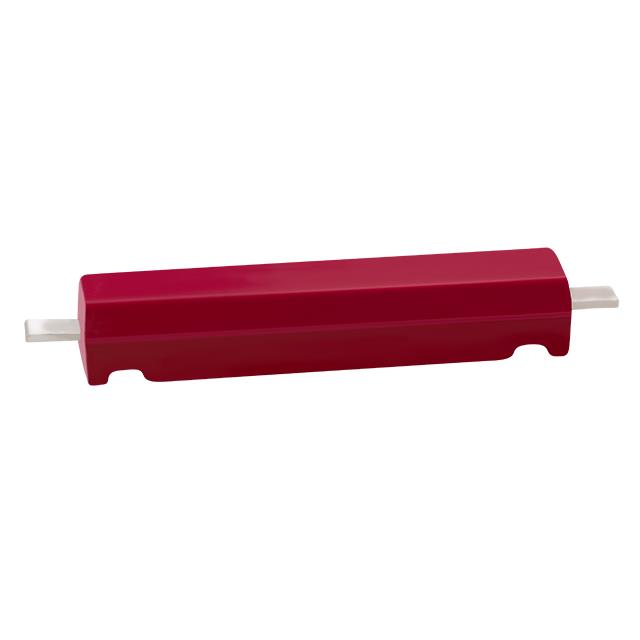

| Part number: | CT10-1540-A2 |
| Description: | SWITCH REED SPST-NO 500MA 140V |
| Manufacturer | Coto Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Coto Technology" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Type | Molded Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial, Flat |
| Length - Overall | 0.614" (15.60mm) |
| Power - Rated | 10W |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching DC | 200 V |
| Size - Body | 0.505" L x 0.095" W x 0.095" H (12.83mm x 2.41mm x 2.41mm) |
| Operate Range | 15 ~ 40AT |
| Current - Carry | 500mA (DC) |
| Voltage - Switching AC | 140 V |
|
