| Part number: | MAL218497801E3 |

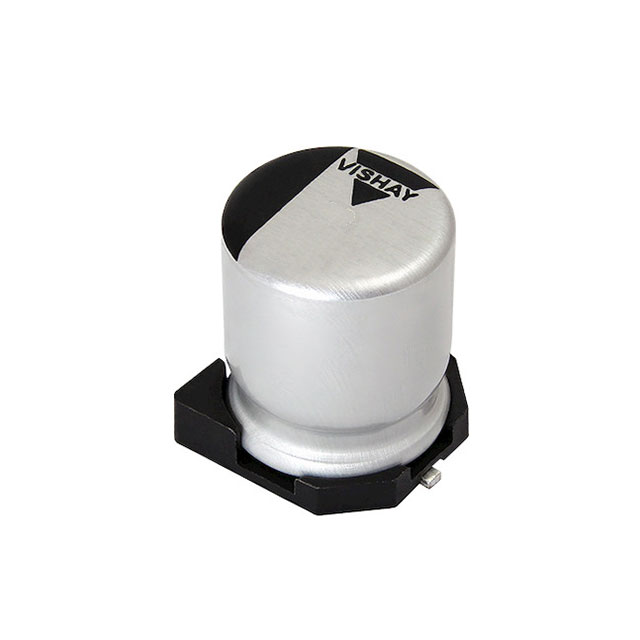

| Description: | CAP ALUM POLY 5.6UF 20% 63V SMD |
| Manufacturer | Vishay BC Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 12000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay BC Components" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive |
| ESR (Equivalent Series Resistance) | 100mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Capacitance | 5.6 µF |
| Voltage - Rated | 63 V |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
|
