| Part number: | 0873-0-15-20-82-14-11-0 |

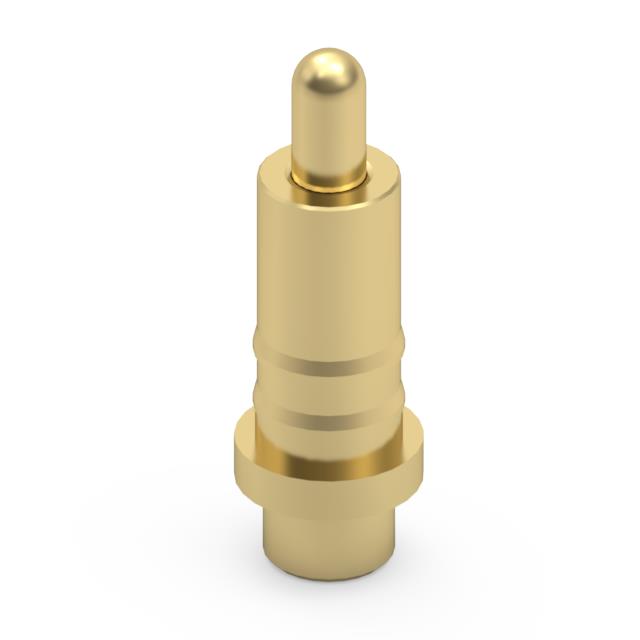

| Description: | CONTACT SPRING LOADED SMD GOLD |
| Manufacturer | Mill-Max |
| Encapsulation | Bulk |
| Quantity | 5000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mill-Max" |
| Contact Finish | Gold |
| Current Rating (Amps) | 9.6A |
| Mounting Type | Surface Mount, Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Contact Material | Brass Alloy |
| Mating Cycles | 1000000 |
| Maximum Working Height | 0.318" (8.08mm) |
| Recommended Working Height | 0.273" (6.94mm) |
| Minimum Working Height | 0.228" (5.79mm) |
| Pad Layout Dimension | Circular - 0.087" (2.20mm) |
| Plunger Size | 0.050" (1.27mm) Dia |
| Operating Force - Initial | 25gf |
| Operating Force - Mid Compression | 120gf |
|
