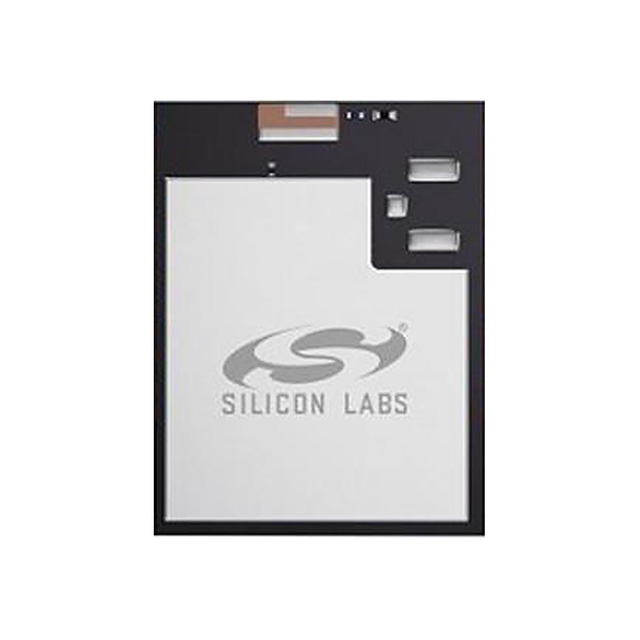

| Part number: | MGM13P02F512GA-V2 |
| Description: | RF TXRX MODULE BT TRACE ANT SMD |
| Manufacturer | Silicon Labs |
| Encapsulation | Strip |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Silicon Labs" |
| Package / Case | Module |
| Sensitivity | -102.1dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 512kB Flash, 64kB RAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.8V |
| Power - Output | 10dBm |
| Data Rate | 2Mbps |
| Protocol | Bluetooth v5.0, Thread, Zigbee® |
| Current - Receiving | 11mA |
| Current - Transmitting | 8.5mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | EFR32MG13 |
| Modulation | DSSS, GFSK, O-QPSK |
| RF Family/Standard | 802.15.4, Bluetooth |
| Serial Interfaces | GPIO, I2C, I2S, SPI, UART |
| DigiKey Programmable | Not Verified |
|
